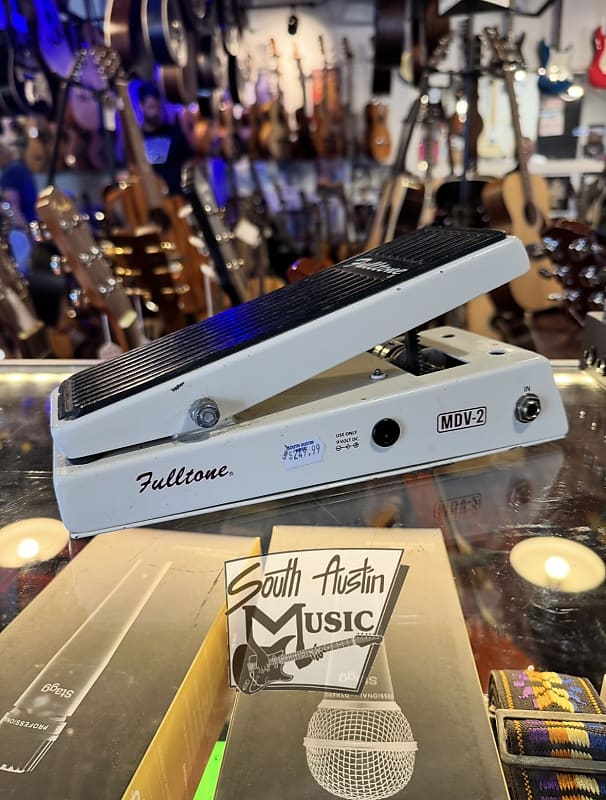

Description

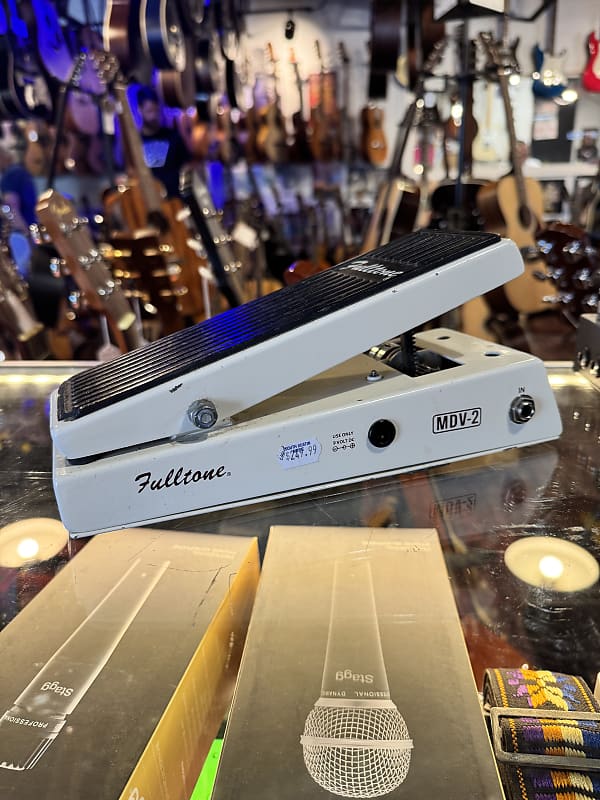

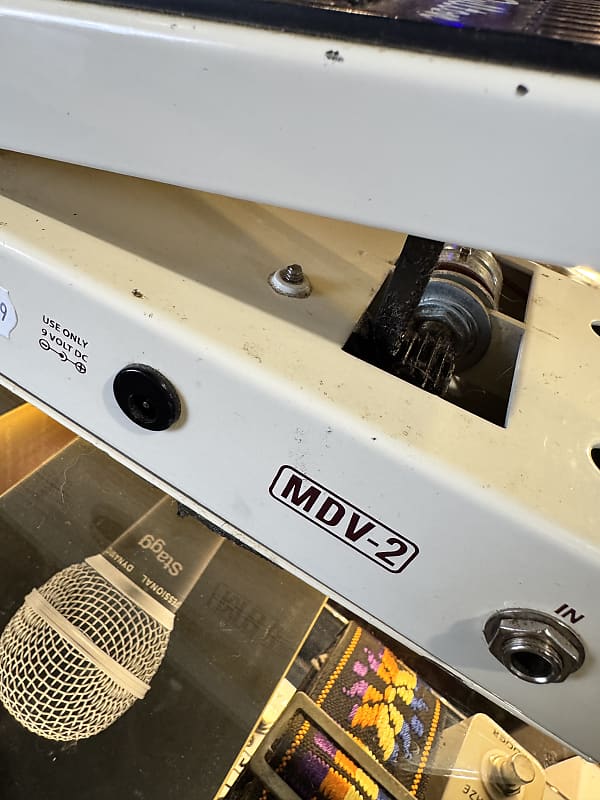

- Input Jack: plug cable from your guitar into this, or the cable coming from the “out” of another effect.
- Output Jack: plug the cable going to your amp into this, or the cable going to the “input” of another effect.

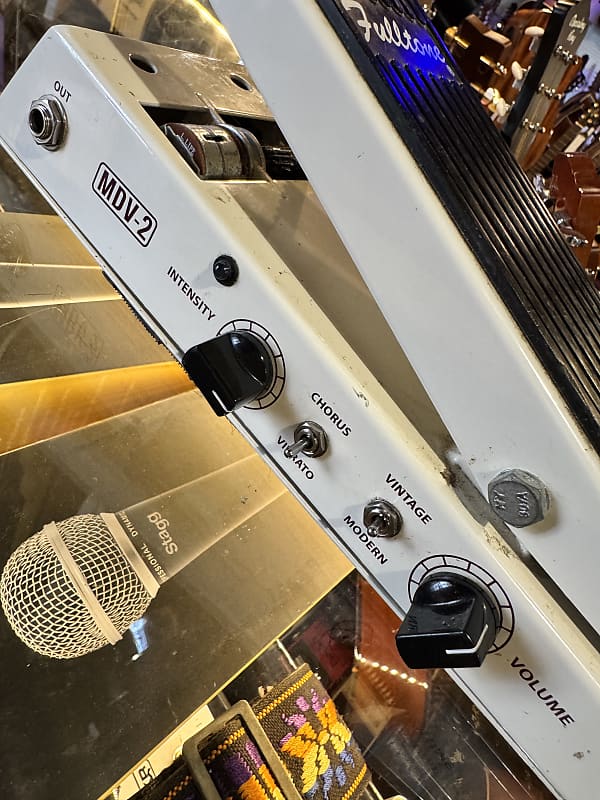

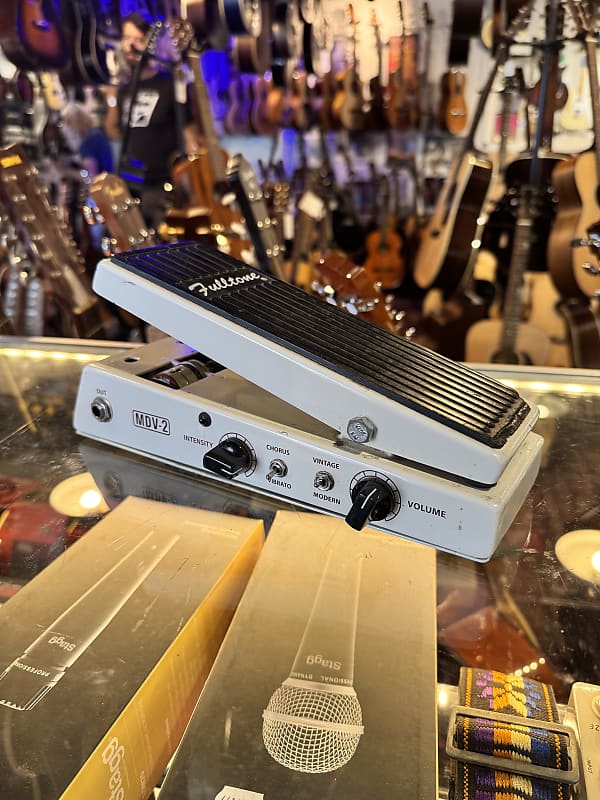

- Intensity Knob: controls the amount of effect (chorus and Vibrato) by increasing (clockwise) or decreasing (counter-clockwise) the brilliance of the light source circuitry. You might decrease when using faster speeds.
- Volume Knob: affects the overall volume of the pedal only when the pedal is turned “on.” Treadle

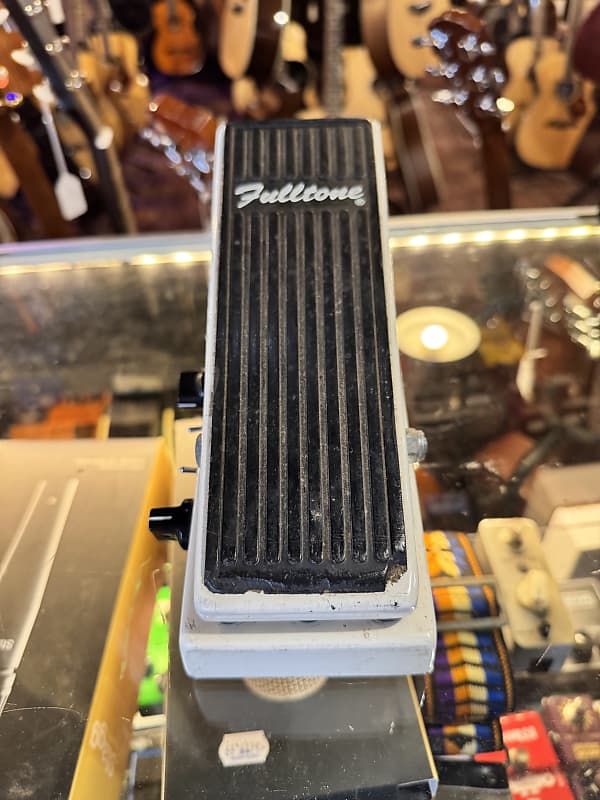

- Speed Controller: the Treadle is the rubber pad where you rest your foot. Since this is a modulation effect it pulses to a rhythm. The speed is determined by how far forward or back the treadle is positioned.

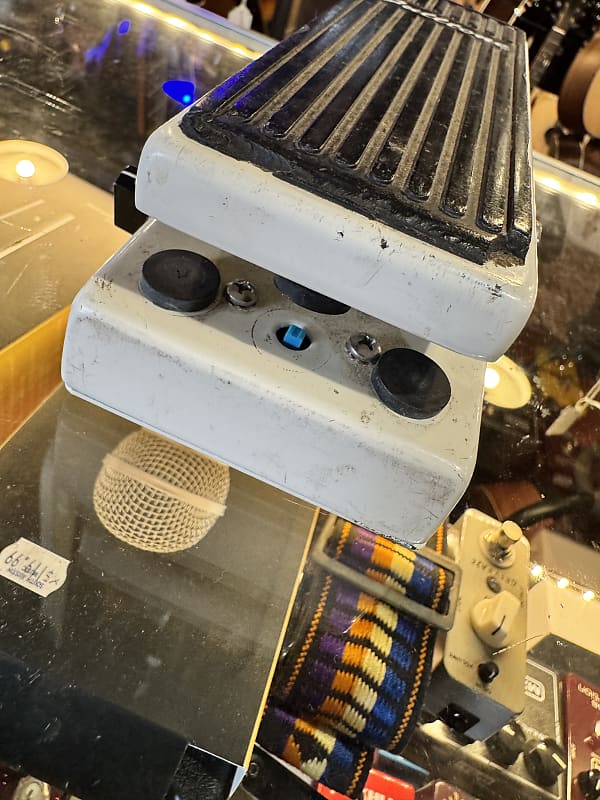

- True Bypass Relay System: Located under the Treadle heel is a tiny micro-switch which activates Two electronic relays inside the MDV-2. When the Treadle is rocked full-heel position (past the slowest speed) the pedal is True-Bypassed. I designed it so that the pedal “defaults” to Bypass if power is lost to your MDV-2.
- Speed/Status LED: This bright Blue LED not only tells you when the effect is On, but also pulses at the selected speed so you can visually sync to the desired tempo.
- Chorus/Vibrato switch: When switch is set to Vibrato…..you get out of tune pitch-bend vibrato with no phasing. When switch is set to Chorus you get the familiar Hendrix/Trower phasing sounds that we all grew up with.
- Modern/Vintage switch: Set to Vintage for stock, warm Univibe sounds of a darker nature..set this switch to Modern for more output and brightness…great when playing less distorted, cleaner sounds!
Let us know if y’all have any questions!
