Modugno Model LE4

Description

Pickup Configuration

Neck Pickup: Fishman Fluence Modern Alnico Humbucker

Bridge Pickup: Fishman Fluence Modern Ceramic Humbucker

  • A250k Volume Push/Pull Potentiometer: Pull to Activate the Single Coil Mode for the Pickups
  • A250k Tone Push/Pull Potentiometer: Pull to Activate the 2nd Voice for the Pickups

Hardware

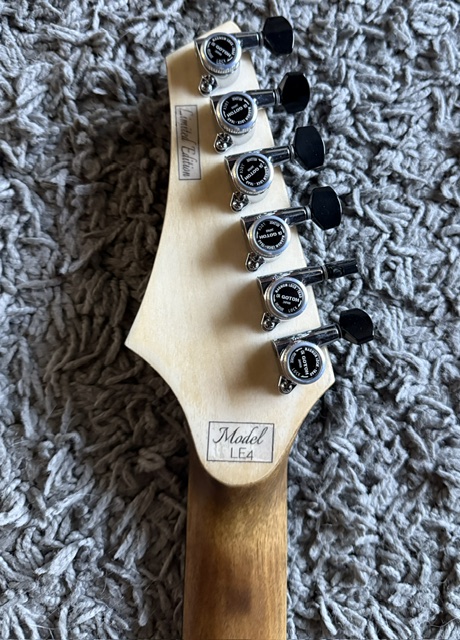

  • Gotoh Magnum Lock-Trad Tuners
  • Wilkinson by Gotoh VSVG Synchronized Tremolo Bridge

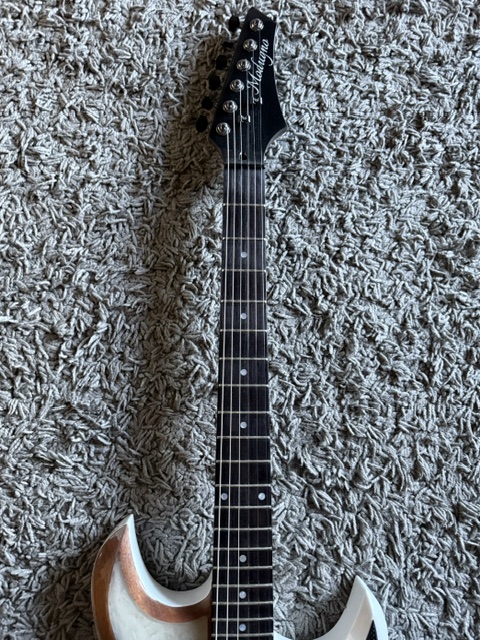

Neck

  • 42mm Nut Width
  • Mother of Pearl Shell Inlay Dots
  • C Shaped Scorched & Stained Maple Neck
  • Thickness: 1st Fret: (20mm), 12th Fret: (21mm)
  • Scale Length: 25.5″
  • 22 Nickel Silver Frets
  • Ebonol Fretboard
  • 10″ Radius
  • Oil & Wax Finish

Body

  • Okoume
  • Gloss Urethane Finish

Other

  • Weight: 8lbs
  • Carbon Fiber Pickguard
  • Trademark Epoxy Resin Design
  • Exclusive #2835 White LEDs
  • On/Off Switch for LEDs
  • C-Port Charging Mount
  • EBL Lithium Ion Batteries
    • Quick Charge Batteries in Approximately 2 Hours
    • Battery Life for LEDs Per Charge: Approximately 5 Hours Per Charge
    • Battery Life for Pickups Per Charge: Approximately 100-160 Hours
    • Overall Battery Life: Rechargeable Up To 1,200 Times
  • 3 Way Pickup Selector Blade Switch
  • 680pF/.00068uF Volume Treble Bleed Capacitor
  • Tremolo Spring Dampeners
